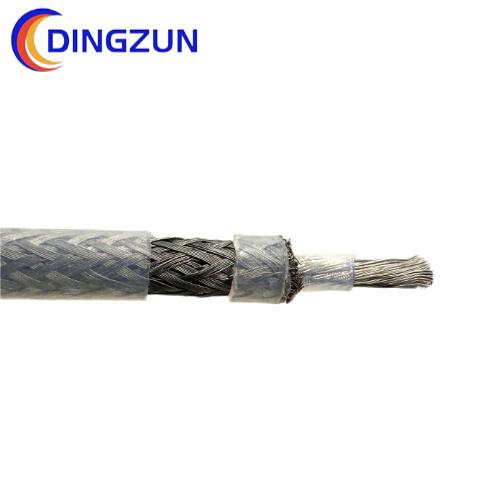

SHIELDED 50KVDC FEP HIGH VOLTAGE CABLE

Details:

Conductor tinned copper (spc optional)
Coating FEP
Shield tinned copper wire braided
Coating FEP silicone
Rated Temperature  -60℃—+200℃
Rated Voltage 50KVDC
Product Description

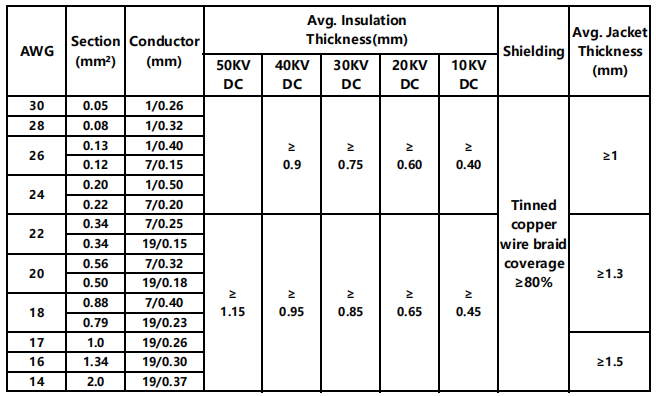

The below sheet is for detail specifications and various voltage grades:

7fd2f8fe3808080a8aa7aa1a9ee1044

Features:

  • Operating Temperature: -60℃—+200℃
  • FEP Dielectric
  • Silver Plated or Tinned Plated Stranded Copper Wires
  • Resistant to UV, Ozone, Weather and Oil
  • RoHS Compliant

Applications:

Shielded high voltage cables are designed to reduce electrical interference and ensure safe and reliable transmission of high voltage power or signals. Some common applications of shielded high voltage cables include:

  1. Power transmission: Shielded high voltage cables are used for power  transmission in a range of applications, including power stations, transformers, and substations. These cables are designed to handle high voltages and currents, and are typically insulated and shielded to prevent electrical arcing and other hazards.
  2. Industrial automation: Shielded high voltage cables are used in industrial automation applications, where they are used to transmit power and control signals to machinery and equipment. These cables are designed to be flexible and durable, and can withstand exposure to heat, oil, and other harsh chemicals. Shielding helps to prevent electrical interference from other machinery or equipment in the area.
  3. Telecommunications: Shielded high voltage cables are used in telecommunications applications, where they are used to transmit high voltage signals between devices or systems. These cables are designed tom minimize signal loss and interference, ensuring clear and reliable communication.
  4. Medical devices: Shielded high voltage cables are commonly used in medical devices such as electrocardiogram (ECG) machines, magnetic resonance imaging (MRI) machines, and ultrasound equipment. These cables are used to transmit high voltage signals with minimal interference, ensuring accurate readings and images.”
