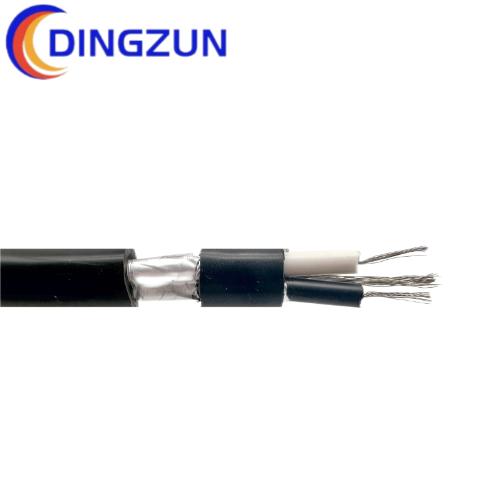

MULTI CORE SHIELDED SILICONE SHIELDED HIGH VOLTAGE CABLE
Details:
| Conductor | tinned copper (spc optional） |
| Dielectric | Silicone |
| Cores | 2 |
| Shield | Al Foil+ tc drain wire |
| Jacket | silicone(FR PVC/LSZH) |
| Rated Temperature | -60℃—+180℃ |
| Rated Voltage | 20KVDC |
Products Categories
Product Description

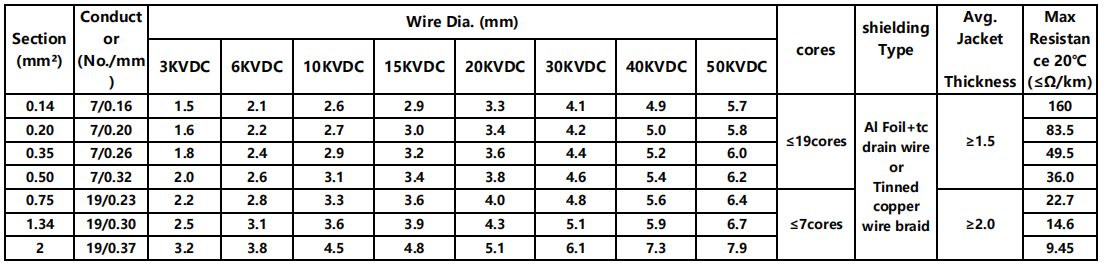

The below sheet is for detail specifications and various voltage grades:
Features：
- Operating Temperature: -60℃—+180℃
- Silicone Dielectric
- Silver Plated or Tinned Plated Stranded Copper Wires
- Resistant to UV, Ozone, Weather and Oil
- RoHS Compliant
Applications:
- Power transmission and distribution: Multi-core high voltage cables are commonly used to transmit electrical power from power plants to homes and businesses. They are also used to distribute power within large industrial facilities.
- Renewable energy: With the growth of renewable energy sources such as wind and solar power, multi-core high voltage cables are becoming increasingly important for transmitting power from these sources to the electrical grid.
- Transportation: Multi-core high voltage cables are used in electric vehicles to transmit power from the battery to the motor.
- Manufacturing: High voltage cables are used in various manufacturing processes, such as welding and electroplating.
