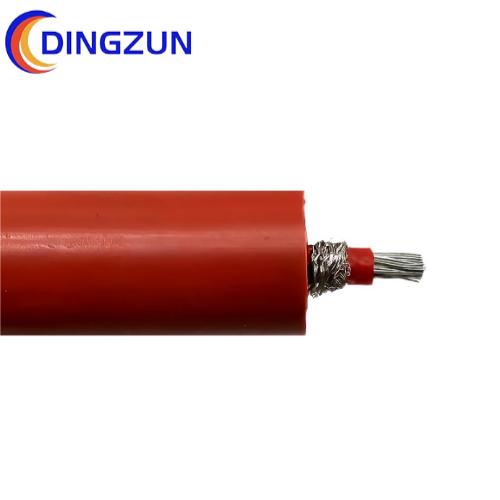

Customized Shielded 100KV High Voltage Cable
Details:
| Conductor | tinned copper |
| First Dielectric | Silicone |
| Cores | 1 |
| shield | tinned copper braid |
| Second Dielectric | silicone |
| Rated Temperature | -60℃—+200℃ |
| First Dielectric Voltage | 6KV |
| Rated Voltage | 100KVDC |
Products Categories
Product Description

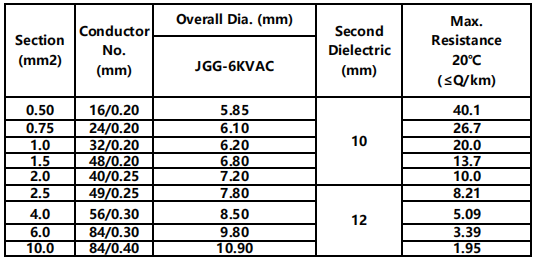

The below sheet is for detail specifications and various voltage grades:
Features：
- Operating Temperature: -60℃—+200℃
- silicone Dielectric
- flexible cable
- Tinned Plated Stranded Copper Wires
- Resistant to UV, Ozone, Weather
- RoHS Compliant
Application:
- Medical Equipment: High voltage cables are used in medical equipment such as X-ray machines, CT scanners, MRI machines, and other medical imaging devices.
- Aerospace and Defense: The cables can be used in aerospace and defense applications such as missile systems, radar systems, and communication systems.
- Electric Vehicles: High voltage cables are used in electric vehicles to transmit power from the battery to the motor.
- Renewable Energy: The cables can be used in renewable energy systems such as wind turbines and solar power plants.
- Research and Development: High voltage cables can be used in research and development labs to power experimental equipment.
