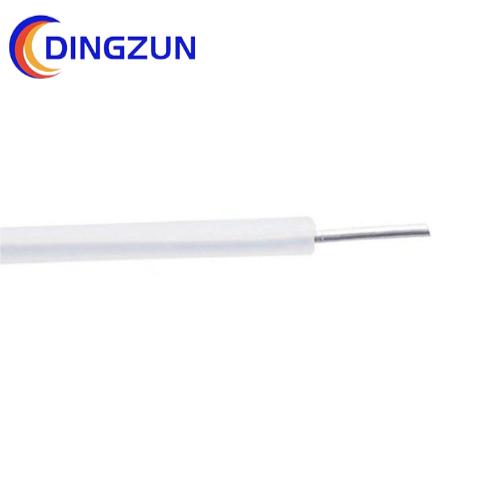

20KV PE INSULATED HIGH VOLTAGE CABLE
Details:
| Conductor | tinned copper |
| Dielectric | PE |
| Cores | 1 |
| Section | 1mm2 |
| Rated Temperature | -10℃—+80℃ |
| Rated Voltage | 20KVDC |
Products Categories
Product Description

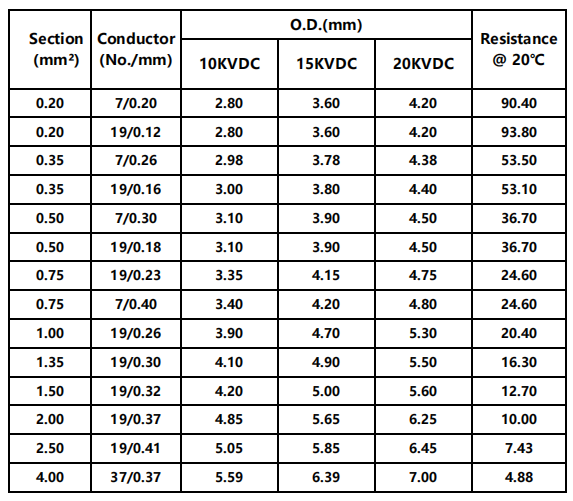

The below sheet is for detail specifications and various voltage grades:
Features：
- Operating Temperature: -10℃—+80℃
- silicone Dielectric
- flexible cable
- Tinned Plated Stranded Copper Wires
- Resistant to UV, Ozone, Weather
- RoHS Compliant
Application:
- Automotive: Ignition wires are used in cars and trucks to transmit electrical energy from the ignition coil to the spark plugs.
- Marine: Ignition wires are used in boats to power the engine’s ignition system.
- Small engines: Ignition wires are used in small engines, such as lawnmowers and chainsaws, to power the ignition system.
- Aviation: Ignition wires are used in aircraft engines to power the ignition system.
